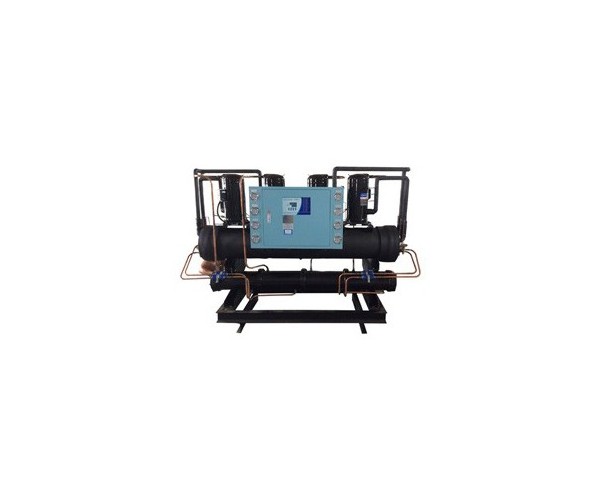

Water Cooled Chiller首頁>Products>Water Cooled Chiller
  • 開放式工業冷水機
    • 產品詳情

    Imported high-quality compressors, pumps and other core components from Japan and Europe and the United States are safe, quiet, power-saving and durable.


    The Italian temperature controller can accurately control the water temperature from + 3 to + 45 C.


    The design of condenser and radiator is unique, and the heat transfer effect is excellent.


    With current overload protection, high and low voltage and electronic time delay and other safety protection devices, when a fault occurs, the alarm will be issued to show the cause of the fault.


    Equipped with stainless steel insulation water tank, easy to clean and maintain.


    It is equipped with reverse phase underphase protection and anti-icing protection.


    This series of chillers can be customized for acid and alkali resistance.


    technical parameter


    型號

    單位

    LC-05WO

    LC-10WO

    LC-15WO

    LC-20WO

    LC-30WO

    LC-40WO

    制冷量

    Kw

    15

    30.5

    45

    61

    92

    122

    Kcal/h

    12900

    26230

    38700

    52460

    79120

    104920

    壓縮機

    輸入功率

    Kw

    4.5

    4.5×2

    4.5×3

    9×2

    9×3

    9×4

    額定功率

    Hp

    5

    5×2

    5×3

    10×2

    10×3

    10×4

    蒸發器

    類型

    盤管式蒸發器

    殼管式蒸發器

    水管口徑

    lnch

    1

    2

    2

    2-1/2

    2-1/2

    3

    冷凍媒體

    類型

    R22

    R22

    R22

    R22

    R22

    R22

    R22

    填充量

    Kg

    2.5

    5

    7.5

    11

    12

    18

    水冷冷凝器

    類型

    盤管式冷凝器

    水管口徑

    Luch

    1

    1-1/2

    1-1/2

    2

    2-1/2

    3

    冷卻水量

    L/min

    70

    110

    170

    330

    330

    480

    水箱容量

    Liter

    50

    70

    125

    150

    150

    180

    水泵

    功率

    Kw

    0.75

    1.5

    2.2

    4

    4

    4

    hp

    1

    2

    3

    5

    5

    5

    流量

    l/min

    60

    100

    200

    400

    400

    400

    管徑

    冷水出口

    luch

    1/2×4

    2

    2

    2-1/2

    2-1/2

    3

    冷水回口

    luch

    1/2×4

    2

    2

    2-1/2

    2-1/2

    3

    外形尺寸

    水冷

    cm

    97×56×97

    158×75×139

    204×80×149

    210×85×151

    224×88×151

    265×95×160

    風冷

    cm

    125×68×113

    182×92×181

    195×105×181

    230×128×200

    240×138×200

    320×148×210
